德国一座钢拱桥施工图片

redflag 发表于 2017-5-21 22:03:40 | 显示全部楼层 | 阅读模式

) S$ r$ i- k- z9 t4 F. ~7 C  Project data
) A" s) r6 ^6 O7 B/ t% F1 f  Location: Dresden, Germany
& l4 b) g5 j$ C2 m  arched bridge over the river Elbe 8 x7 Z# j& M3 r5 W" I( i
  structure: arched bridge with four lanes, plus pedestrian and cycle paths + p$ j% p8 w! u8 {1 d( h" ]
  superstructure in steel composite construction method
1 Y& f8 Z3 e1 T4 E2 X. U# Q' _& t  overall length: 635 m   s2 Y0 Z, `# E- B) s0 j8 \% N- x
  standard cross-section width: 28 m . T0 p- N2 {* `: f4 a/ p
  span of steel arches: 148 m 6 G7 F& h1 y2 M! W
  construction period: 2007 – 2012 - q( ?5 a& _0 X9 _/ n
  Requirements , M2 ]' x7 O) A1 v& Y- p
  complicated bridge geometry
# @4 l) q' |4 d" ]4 K  Customer
2 M  S/ P' n0 s. s6 o+ {+ r  ARGE Ingenieurbau Waldschlsschenbrcke;
7 g8 u7 h# I1 t4 F* c+ t  Schsische Bau GmbH, Dresden and EUROVIA Beton GmbH, Oebisfelde
. N& I1 i- [+ g$ n" Y6 `, W# j7 l4 K: D4 d9 ]; j: R  e

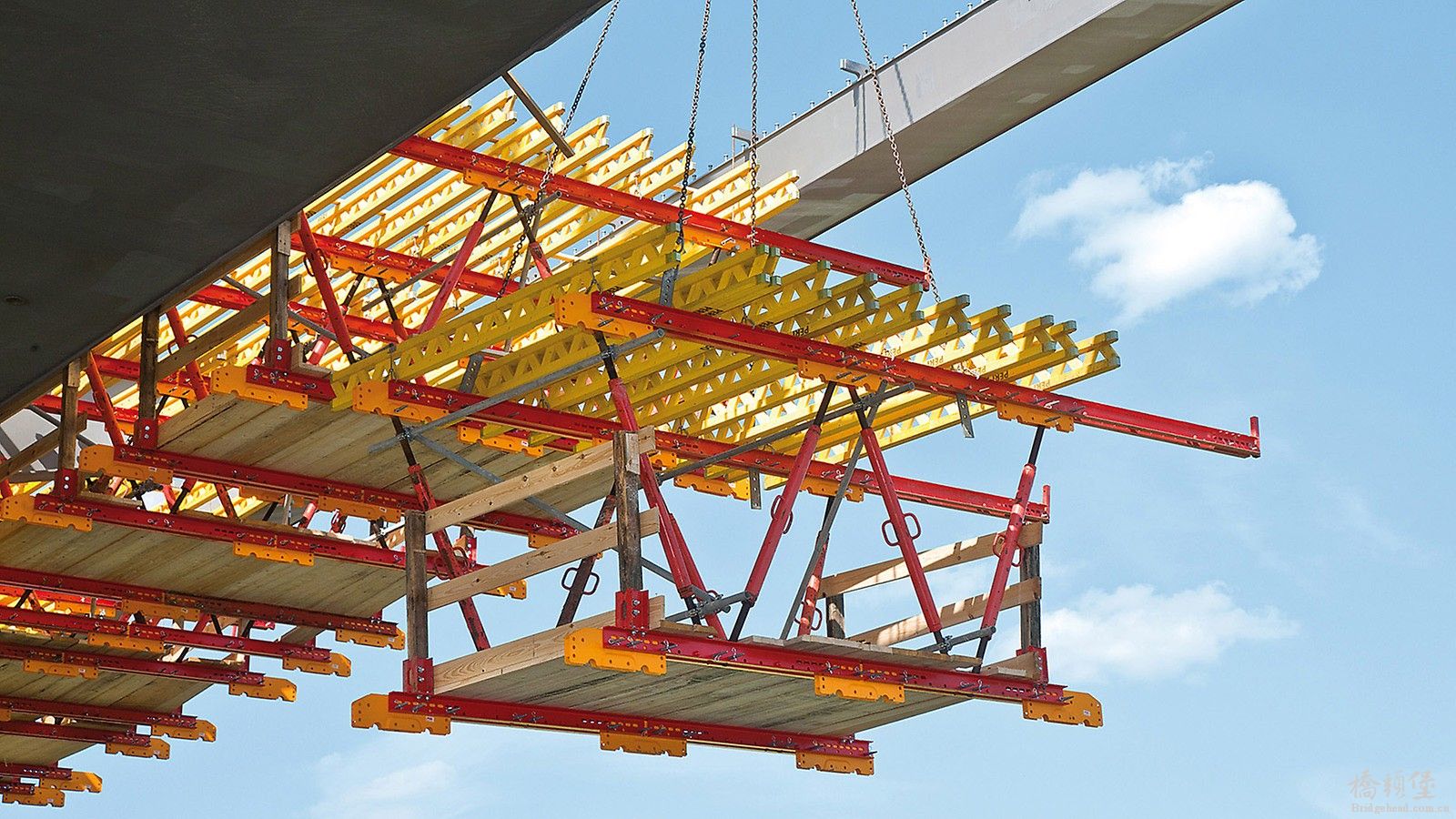

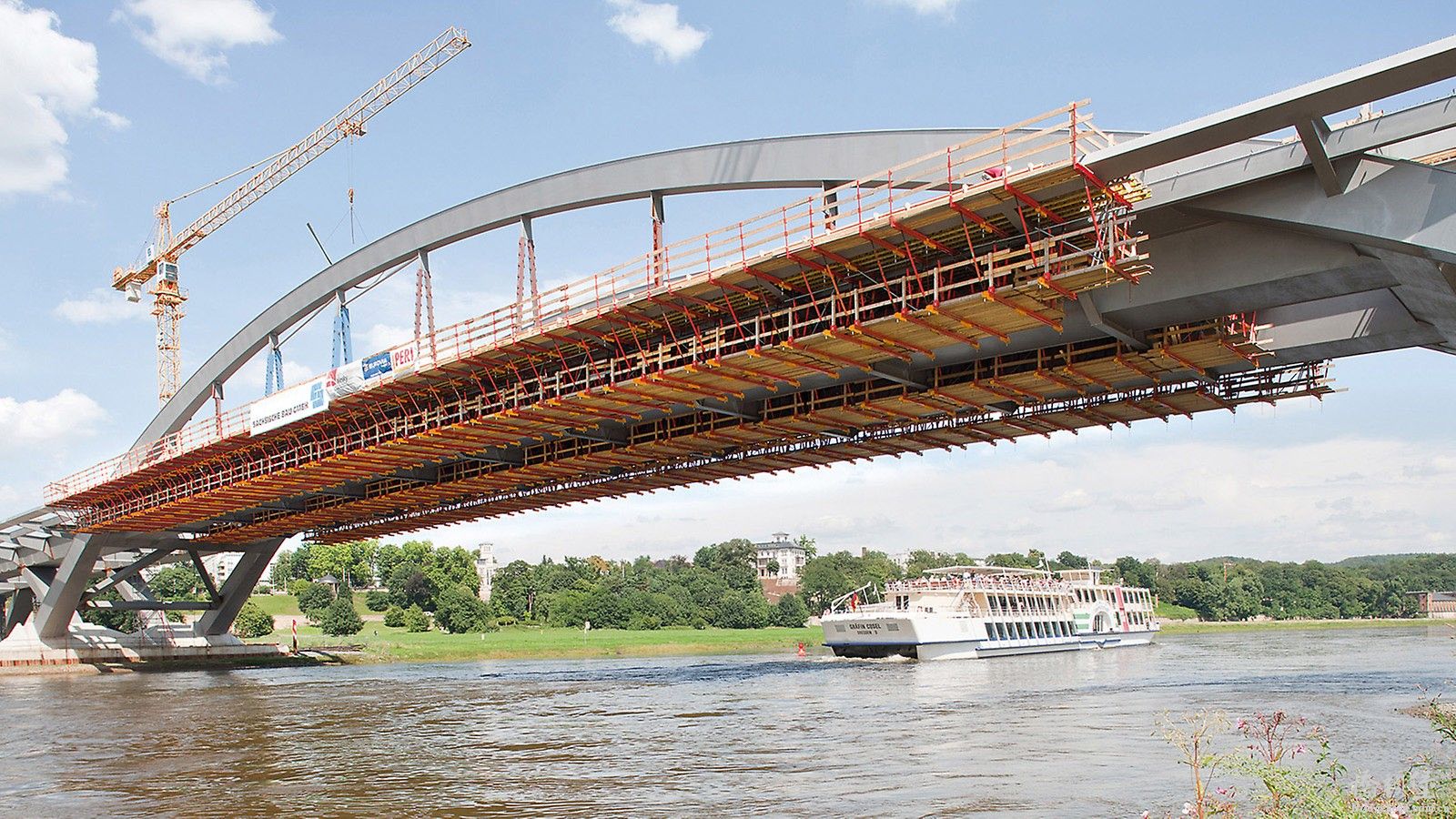

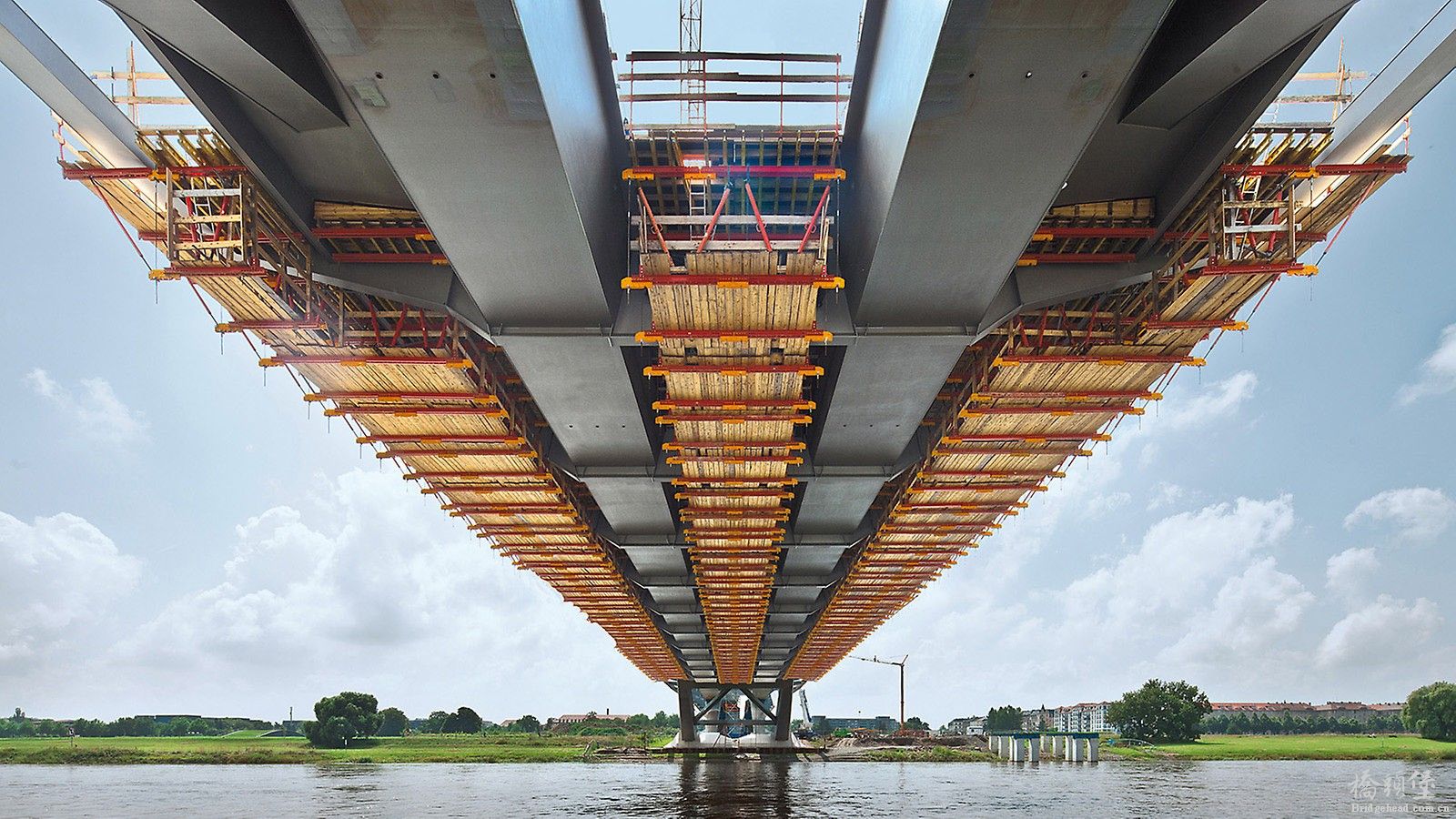

connects-the-eastern-and-southern-districts-of-the-city-with-areas-in-the-north-.jpg -two-steel-arches-each-with-a-span-of-148-m-carry-the-middle-section.jpg the-carriageway-slab-of-the-steel-composite-bridge-was-constructed-in-21-concret.jpg four-lanes-and-on-both-sides-of-the-bridge-4-45-m-wide-pedestrian-and-cycle-lanes.jpg gt-24-lattice-girders-provided-support-for-the-formlining.jpg lightweight-raised-formwork-units-facilitated-fast-and-simple-moving-to-the-next.jpg
