本帖最后由 西风独自凉 于 2010-5-31 08:32 编辑

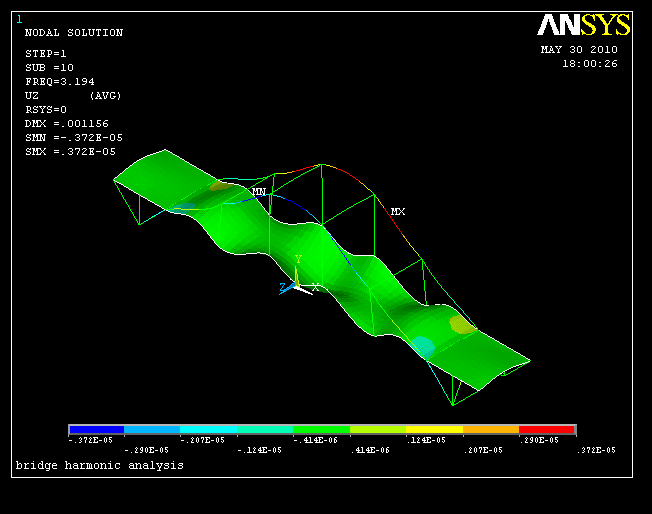

小弟对ansys不是太熟练，做完硕士课题后，感觉学好ansys还是必要的，再说离开学还有一段时间，小弟就较为系统地学了下ansys，所用参考教材为：《Algor、Ansys在桥梁工程中的应用方法与实例》，《ANSYS.结构有限元高级分析方法与范例应用（第一版）》，《ANSYS.结构有限元高级分析方法与范例应用（第二版）》，《ANSYS土木工程应用实例》，《ansys高级工程有限元分析范例精选——祝效华》。这些教材，基本上学习ansys最好的教材了，但遗憾的是这些书中都有错误。如能将这些错误改正，对自己和别人都大有益处。 这些书中的错误有些地方小弟可以自己看出来，有些地方就无能为力了，在此，特向各位师长，学长，同仁请教。 首先，将自己发现并改正的例子发出来，供大家讨论。 《ANSYS.结构有限元高级分析方法与范例应用（第一版）》第8章悬索拱桥地震荷载响应分析有错误。本人作了改动，模型和地震响应分析的完整命令流： FINISH /CLEAR /FILENAME,bridge harmonic analysis /TITLE,bridge harmonic analysis /PREP7
et,1,beam4 ET,2,LINK10 et,3,shell63 r,1,0.6667,0.1667,1,2 r,2,0.0314,0.1 r,3,0.5,0.5,0.5,0.5,,, !定义材料模型及参数 MP,EX,1,2.0e11
!弹性模量 MP,PRXY,1,0.3
!泊松比 MP,DENS,1,7800
!密度 MP,EX,2,3.0e10
!弹性模量 MP,PRXY,2,0.2
!泊松比 MP,DENS,2,3000
!密度 k,1,-60,-10,0 k,2,-50,0,0 k,3,-30,15,0 k,4,-10,20,0 k,5,10,20,0 k,6,30,15,0 k,7,50,0,0 k,8,60,-10,0 k,9,-70,0, k,10,-60 k,11,-30 k,12,-10 k,13,10 k,14,30 k,15,60 k,16,70 kgen,2,all,,,,,-20,,0 *do,ii,1,7 l,ii,ii+1 l,ii+16,ii+17 *enddo *do,ii,2,7 l,ii,ii+16 *enddo l,1,9 l,1,10 l,17,25 l,17,26 l,8,15 l,8,16 l,24,31 l,24,32 l,1,18 l,2,17 l,8,23 l,7,24 *do,ii,3,6 l,ii,ii+8 l,ii+16,ii+24 *enddo a,9,10,26,25 a,10,2,18,26 a,2,11,27,18 a,11,12,28,27 a,12,13,29,28 a,13,14,30,29 a,14,7,23,30 a,7,15,31,23 a,15,16,32,31 lsel,s,,,1,32 latt,1,1,1,,,, lesize,all,2 lmesh,all lsel,s,,,33,40 latt,1,2,2 lesize,all,,,1 lmesh,all aatt,2,3,3 aesize,all,2 amesh,all nsel,s,loc,y,-10 d,all,all nsel,s,loc,x,-70 nsel,a,loc,x,70 d,all,ux allsel,all fini !计算模态解 /sol antype,modal modopt,lanb,10 mxpand,10 solve fini !谱分析求解 /sol antype,spectrum spopt,sprs,10,0 svtyp,3,1, sed,1,0,0 freq,0.5,1.0,1.5,2.0,2.5,0,0,0,0 sv,0.8,0.5,0.6,0.9,1.2, solve fini !合并模态 /sol antype,spectrum srss,0.01,disp solve fini !后处理 /post1 set,list set,last prnsol,dof plnsol,u,x,0,1 !显示X方向位移云图 plnsol,u,y,0,1 !显示y方向位移云图 plnsol,u,z,0,1 !显示z方向位移云图 fini
《ANSYS.结构有限元高级分析方法与范例应用（第一版）》第9章钢筋混凝土梁的弹塑性分析的错误本人始终找不出来，希望大家人尽其才，帮忙看看。 FINISH /CLEAR !**************************************************************** !钢筋混凝土梁的弹塑性分析命令流 !**************************************************************** /FILENAME,rc-beam /TITLE,analysis OF rc-beam /PREP7
et,1,link8 et,2,solid65 r,1,28.3e-6 r,2,113.1e-6 r,3,314.1e-6 r,4, !（4）定义材料模型及参数 MP,EX,1,2.1e11
!弹性模量 MP,PRXY,1,0.3
!泊松比 tb,bkin,1,1,2,1 tbdata,,2.1e8,0 MP,EX,2,2.55e10
!弹性模量 MP,PRXY,2,0.3
!泊松比 tb,kinh,2,1,8, tbtemp,0 tbpt,,0.0001,0.936e6 tbpt,,0.0003,2.664e6 tbpt,,0.0006,4.896e6 tbpt,,0.0009,6.696e6 tbpt,,0.0012,8.064e6 tbpt,,0.0016,9.216e6 tbpt,,0.002,9.6e6 tbpt,,0.0033,9.6e6 tb,conc,2,1,9, tbdata,,0.3,0.55,1.5e6,-1 block,0.0,3,0,0.4,0,-0.2 /view,1,1,2,3 /rep,fast lplot /pnum,lie,1 /replot vatt,2,4,2 lsel,s,line,,4,5,1 lsel,a,line,,2,7,5 lesize,all,0.05 lsel,inve lesize,all,0.025 lsel,all vmesh,all nsel,s,loc,x,0.125,0.175 nplot /view,1,1 /rep,fast /pnum,node,1 /replot type,1 mat,1 real,1 *do,i,3349,3354,1 e,i,i+1 *enddo *do,i,3355,3446,7 e,i,i+7 *enddo *do,i,3452,3447,-1 e,i+1,i *enddo *do,i,3447,3356,-7 e,i,i-7 *enddo esel,s,type,,1 egen,19,315,all,,,,,,,,0.15,0,0, allsel,all type,1 mat,1 real,2 *do,i,3145,9130,105 e,i,i+105 *enddo esel,r,real,,2 egen,3,-3,all,,,,,,,,0,0,-0.075, allsel,all type,1 mat,1 real,3 *do,i,3237,9222,105 e,i,i+105 *enddo esel,r,real,,3 egen,3,-3,all,,,,,,,,0,0,0.15, allsel,all esel,s,type,,1 eplot /view,1,1,2,3 /rep nsel,s,loc,y,0.19,0.21 nsel,r,loc,x,-0.01,0.01 d,all,all allsel,all nsel,s,loc,y,0.19,0.21 nsel,r,loc,x,2.99,3.01 d,all,all allsel,all fini /solu antype,0 nlgeom,1 nropt,full eqslv,spar,,0, time,1.0 autots,1 nsubst,100,200,50,1 kbc,0 cnvtol,u,,0.03,0,, neqit,50, pred,on,,on outres,all,all solve fini /post1 set,last /dscale,1,100 /replot pldisp,2 plnsol,u,y,0,1 plcrack,0,0 fini |
