/prep7* E, ~3 p% @0 R* o
!********************************, P$ a, M f5 X1 ~
!定义材料属性 Y- _; k! s2 Y) t7 Q( r6 t
!********************************
8 S1 k) R8 a' Net,1,solid45
3 Z# `8 }+ U* q; t1 Xmp,ex,1,3.44e104 @; V1 f0 _" L- o. L: u
mp,prxy,1,0.2 A+ {9 q( I6 b+ R ]
mp,dens,1,2548.4, q! [7 Q2 U% W1 F+ I6 l8 r* z. }0 c
r,1 !定义混凝土实常数为空3 S. G$ E3 p! N8 g
et,2,link8
3 W0 B% b+ z! U- P1 L8 hmp,ex,2,2.0e11' O/ E+ U* P! }5 T% G d2 b
mp,prxy,2,0.3
$ g! c5 H" N3 A! g* C( lPI=ACOS(-1)
+ R) \7 X* R: [' pr,2,3.10e-3,0 !定义钢筋材料面积
2 B3 [) }: N& X0 T% G; Yr,3,2.16e-3,0 !定义钢筋材料面积9 X" `8 W/ z* ?/ f( c: G: ^5 p
r,4,6.16e-4,0 !定义钢筋材料面积
0 R! m+ A/ ^: q. Z. m!********************************
3 ?7 `* U3 P4 h; s& `, F!建立实体模型* H! N$ w- m2 j) _
!********************************
: s& o f$ a7 n+ T1 H0 ?& X!********************************
- p( d" w9 G% b8 L: }!生成下部等宽段
% c+ ? n2 h+ Q4 o5 C!********************************
% m& B6 R& T7 @5 C2 {4 b, \w1=2.75, i2 p& g& @0 G
h1=0.9/ p5 r. c/ G, @ y7 h; h) |
ZZ=0
* N* Y. k# j2 K/ K: k, {k,,w1,h1,ZZ,
}) ^, r. m+ C" s$ m0 o3 tk,,-w1,h1,ZZ,
( \6 {8 [; Z7 ` T% ]' Ek,,-w1,-h1,ZZ,
* p& k9 Y' s" p0 a2 Ek,,w1,-h1,ZZ, 0 r3 y7 C, Z# C' h% A
a,1,2,3,4
8 ^* ?: _ s( u, Kdundi=2
1 N9 G# K* e; z' mvext,1,,,,,dundi
7 V- H0 A* P0 Y) d7 E2 S!********************************2 w, }1 d6 c, Z* T6 W
!生成第一变宽段4 f9 [. y) B8 W+ J
!********************************; [# a" {2 F2 p! \
w1=2.767) p; U; X# {/ @" L
h1=0.9
" p3 b0 K, u# s! ^% G; V- bZZ=2.67 W0 \) Q8 v3 H) s7 G- X* ]
k,,w1,h1,ZZ,
' c+ I5 ]( v% M8 o) T+ x9 c$ nk,,-w1,h1,ZZ,/ w7 a3 n) j6 Y! V& [
k,,-w1,-h1,ZZ,
& y- f5 Y) q# z, h1 ?$ w. X# @% }3 \k,,w1,-h1,ZZ,
) ]8 `* {4 Q5 T4 @5 g: _4 Cyz=4& {/ P/ m3 o. A( a) A1 U
n=2
) P0 G% }) _' {( x% x- R*do,I,1,4, I5 W+ G0 w5 \ C
l,I+yz*n,I+yz*(n-1)
$ A4 r! W3 i8 J9 Z" l0 x*enddo
2 F& \: M g( Da,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz" R2 I+ p# L# e- [& o A, r
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n) y$ E7 }3 k+ ^ h! w
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)
0 G$ x9 b/ q) Y0 V4 Ua,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
2 q1 n3 |- p, i na,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz
' @0 `' J! f3 V6 K6 Uva,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2)
; a" D7 r' V8 g!********************************$ T4 u: T+ i4 ~" ]
!生成第二变宽段
7 d9 p4 N2 T- H, X; t# e!********************************5 b! ^9 R. J' d$ m0 F/ o
w1=2.818
[% {- B' h S' u' q- ch1=0.97 [% z3 R* f: O+ L) q% K
ZZ=3.2- q) F1 o5 i2 G& E1 r P7 b
k,,w1,h1,ZZ,
( J3 _% X9 Z8 b' K+ tk,,-w1,h1,ZZ,
4 S( x8 D! f3 L0 }5 `7 Bk,,-w1,-h1,ZZ,
3 z- C: `& D: l# @2 G! hk,,w1,-h1,ZZ,
$ S( R! R0 ]+ v- |yz=41 c- _' [' [! D1 m/ @& q
n=35 F, z& L1 |% U
*do,I,1,4" c2 t# u4 D4 R+ g2 I, j
l,I+yz*n,I+yz*(n-1)
+ r1 o6 d9 z7 d1 H*enddo( s& _; H( }) \$ ?9 u
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz% K1 q. J/ }) d" s4 D* r
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n
V( ^, W C; _4 i5 u- e* `a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1): t: z' ^- N; y( e. N8 e
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
" c+ ], `' ]9 o9 Y' _* Y+ B. Qa,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz. P6 z/ S$ a2 y( w; ]
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2)" A5 P8 M( H( ]- h% V& [8 P% I
!********************************
1 G1 b( g6 A" R4 u!生成第三变宽段( V7 X: y" J3 I& V1 @
!********************************
. N. S* ` S4 r+ S6 g& ~7 Kw1=2.886 o2 s, h% c! @9 \# I% Y# \) J, g
h1=0.9 X1 C# _. P) {
ZZ=3.78 t$ X3 v3 {% Y/ C0 D
k,,w1,h1,ZZ, `' I. ~+ P# w% I; P
k,,-w1,h1,ZZ,
- O: X m( X, V. w6 Q$ F) d+ Kk,,-w1,-h1,ZZ,
% _: d" a# ?5 x, K7 @8 Ok,,w1,-h1,ZZ,
2 L" P3 c$ S. u# g% c! B% @yz=48 t, R4 [2 @& p* L
n=4
) ]* q4 n( d9 J- h- u3 v*do,I,1,4! }% `7 B$ @/ Z0 B: q% ?" e
l,I+yz*n,I+yz*(n-1)- l- I( y% S. y
*enddo
& L- p5 a+ r6 s5 Ca,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz( m8 K, c/ S" l9 K
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n
( \' A/ h. G* q; h$ O8 Ia,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)- y6 a- z: L+ Q' p3 F
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
+ R$ j+ V+ s; Q* ]2 E3 {a,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz, d5 @1 B$ p$ b% n; k4 f+ z
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2) v/ B7 {9 z0 I$ {, a, A, M: s
!********************************
& g5 F- ?" u6 w& s!生成第四变宽段
# b T4 d6 _, p [! h- P3 E!********************************
8 H2 u: n% w6 k8 c$ Y3 |w1=2.979
+ Y; e8 A- H. P! R* E/ ^$ Uh1=0.9
+ R5 e- }* P* {ZZ=4.2
% `5 }+ F, ?6 {5 `. i6 x5 kk,,w1,h1,ZZ,2 ~" r) c/ n7 L
k,,-w1,h1,ZZ,7 t# M; N2 g* p5 O) r# o0 Y; ~
k,,-w1,-h1,ZZ,
: E0 z+ I2 f3 v* r1 F" K4 ek,,w1,-h1,ZZ,- X/ {: c; _6 G/ Z' ^1 _5 K
yz=4* U/ W' G: C. Y
n=5
! Y4 T) U0 r6 k) w9 } o* a6 |*do,I,1,4
Y8 T: g1 O# _+ ` U8 Cl,I+yz*n,I+yz*(n-1)" d/ p0 u' G& B% w) V
*enddo. n8 z; ]; ~6 i
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz4 n" V/ e7 N0 O3 @( ?
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n0 A. W5 \7 ~: \6 m3 h
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)& U6 c0 Q) [& x" t$ T- y; ^
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)4 T% [6 n" v/ |# q- c; C* W. \
a,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz
/ u3 g4 v- c+ K) Y% Z5 `* \va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2)$ ^1 N4 b2 ~9 s# ]$ Q
!********************************
0 A9 s. s$ w. O( { ?) \!生成第五变宽段
- n; `2 n( `7 n8 F; a# v3 {!********************************
! a: B0 P( q2 N. Jw1=3.097
7 Z1 | h `) w& N" s) Wh1=0.9' m y- H0 L- h4 u
ZZ=4.7
4 V3 d) H! ^ h6 t/ g+ T5 R$ N) S; ck,,w1,h1,ZZ,
3 i* L* V4 S0 u( c+ m% C1 E+ F/ Ek,,-w1,h1,ZZ,$ E$ t% Y( f- G" i6 c
k,,-w1,-h1,ZZ,
* Q/ o) a0 s R/ @6 Ik,,w1,-h1,ZZ,) s4 y# o0 i$ l/ ]/ g0 {
yz=47 R3 n7 R% p9 S
n=6! r" N! W! x% @+ k i0 u/ k
*do,I,1,4
7 U K2 E' A# |! X5 Ml,I+yz*n,I+yz*(n-1)1 d9 @4 C0 c' H* V/ g/ `; O5 F
*enddo ?% a4 _: Z7 F" U
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz }& ~, K2 T3 ]- }: u
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n% |# \- v2 f# f5 m/ Q" [0 j
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)
6 ]2 g; t1 N- P2 ea,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)! U: G3 C3 v3 b. H& Z* J
a,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz m0 O; t+ j( k! s, J
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2), ?* ]- g* m. k: P! z
!********************************
, I3 {* r- F; \* [5 @!生成第六变宽段
/ ^% \8 U$ @& |, |) w! }!******************************** _% d1 X6 _3 b, t3 h& p
w1=3.24( P- [& a/ k" ]+ y- U" \
h1=0.9
% r* N/ X9 x9 e7 x: @3 [1 h% oZZ=5.2
' l$ T% Z- S& I5 \* h- J0 h4 Kk,,w1,h1,ZZ,
+ n8 W/ U' F# g9 j |, ~k,,-w1,h1,ZZ,; l' ?/ @; Y: }3 n
k,,-w1,-h1,ZZ,
) j/ T: i5 E+ o) ]& l9 ? j* r1 ck,,w1,-h1,ZZ,
' ], T+ Q6 V9 b6 A: b" _: |: y$ ^yz=4: _8 B: y: h8 b, W
n=79 h$ d M( h) W" r
*do,I,1,4/ A. l& n! j; E" i
l,I+yz*n,I+yz*(n-1)
4 Y: ?; j) q$ d*enddo, X; N& x7 x* `3 X6 |
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz
" l: d) z* _* X5 L- v. ^; [/ e/ t$ m- Ga,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n1 l- O, b; y# W) o4 @- e
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)
8 S' k h2 V8 K F& y* E2 a* ~a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
( ?2 e6 E N, R: w, Ta,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz: r1 M) Z/ K, s; q! A0 F
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2)
& q3 m7 `! [% F, S3 i' J7 Q. Q!********************************' |) c+ @( v$ c
!生成第七变宽段
* ?/ c( E: w, n, c: I, g) X9 N!********************************9 h7 S X- U( U4 R9 }: ^
w1=3.411
5 ^6 d9 P6 s1 Z/ }: u) K$ D9 Sh1=0.9% i. I3 N: i- @6 W; `
ZZ=5.7' o* `7 G1 {" A6 u6 m( n) t
k,,w1,h1,ZZ,
% m$ [2 A. d: E! _: g1 ~k,,-w1,h1,ZZ,
/ w) Y; N f, C' S. b g0 Z) t0 f3 Ck,,-w1,-h1,ZZ, n1 w4 ~/ K- R3 j( L" ~4 G0 _
k,,w1,-h1,ZZ,
0 N2 r5 Z1 K" T @. Zyz=49 n" e: F( z) @) E6 y1 e
n=8) m. k- @% R0 ?+ @ `1 x3 Y
*do,I,1,4
# N3 [1 J/ b6 {+ b, zl,I+yz*n,I+yz*(n-1)7 h# |0 O0 H R& _, }% P' ~
*enddo4 a) k9 L, m" A/ J2 v0 p
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz# @6 S6 j* }2 F) U! A3 f- B P. [% b
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n, e* T2 j$ C' K7 @2 q: p
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)9 Z# W! U! I2 i, a7 q
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1), }% V8 ~3 ?* t1 P/ y) b$ R- Z
a,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz! k% u9 |4 L9 R# G8 Y3 _* t( ^4 g
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2); ^. ^: Q8 |3 i+ a
!******************************** I- e0 z' [3 t3 w2 ]
!生成第八变宽段
) p* M- E$ |# ]& ~) \/ ]) d!********************************
9 D0 R) n6 ]5 J' j* [( {w1=3.61" z, }: L, l. g2 U
h1=0.9- h8 F. n* b) b$ _- @0 c+ l
ZZ=6.2
* q1 r4 c6 J! B! x B" O- |$ Ek,,w1,h1,ZZ,
# ^! k0 i+ X9 Mk,,-w1,h1,ZZ,* k( s6 _) m8 m8 s# x; h
k,,-w1,-h1,ZZ,
( X. P, I# A9 kk,,w1,-h1,ZZ,$ K# D. j' E" K' Q) w- V
yz=4
) R! h* h. C/ T; A2 |8 I( V+ @n=97 B( ~( C: {! l S9 m
*do,I,1,4
" D4 G/ F* M4 R$ j0 _l,I+yz*n,I+yz*(n-1)
; d9 _2 U( X# t5 i*enddo: A$ t* E. y7 B0 A" n+ k
a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz
% ~% N) x% o b7 C5 Z3 h& b0 w, Za,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n
% q3 ~" Y: s" W5 w' `* |! Ea,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)
g1 R M+ O6 s' C2 [a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
. W( h, x; w/ Ja,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz
* G1 K2 P4 ]) m( t# @+ |* n/ n& ava,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2), \0 [2 w+ j" ?7 {
!********************************
( d% ?4 s) M* M!生成第九变宽段
2 i5 A+ L/ ?1 {!********************************
- h7 G: P2 ~% G* D2 gw1=3.839
5 p1 \$ T/ a. N) \& G6 Eh1=0.92 a j' P9 o# J5 F; F0 H& t# \
ZZ=6.7
( D1 S* m% f8 B5 q1 Ek,,w1,h1,ZZ,
. u! ` a8 S9 _6 ~0 ~k,,-w1,h1,ZZ,
/ ~( u: A( H: D* a0 v" K( P# @* ^& u# Ck,,-w1,-h1,ZZ,
2 N* K4 c! }$ r8 {4 v- D& |k,,w1,-h1,ZZ,
) _8 b. v( e0 P, g9 }1 C gyz=44 H. @& ^6 Y3 U, | I
n=10
7 R4 [( @% ?* ]* x9 l*do,I,1,42 w0 ~8 }( e8 C5 {+ D
l,I+yz*n,I+yz*(n-1)4 W/ M2 ?# }: K! ^ ?% R
*enddo
7 h# t+ B" u }, Ja,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz+ ~! ^, p& a: ]8 M) j5 w
a,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n3 L5 r' e2 e$ y. b W6 _
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)9 i4 \; T) p7 {0 c' W4 P
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
3 i- ^% g0 C5 g; ]8 Y- [0 ]a,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz: M0 q2 ^& N' y. _; W
va,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2): Q7 D; X, F8 g6 @
!********************************
/ [8 x4 z- d2 u1 p- f!生成第十变宽段
2 l3 V6 |* f: v6 {* S* \7 e!********************************
+ t/ \+ r! ?* [& }w1=4.10 W/ D3 z/ c9 E; [
h1=0.9+ ~+ @4 o# N3 H" E
ZZ=7.2
$ j) k! D* s& ]* [- G) f e* U3 o* @k,,w1,h1,ZZ,: d3 m" H2 s7 g* {
k,,-w1,h1,ZZ,9 y0 b5 S8 U, F W- Z& |
k,,-w1,-h1,ZZ,
# f) j# V: z# Z! W2 Ck,,w1,-h1,ZZ,
4 M @. q2 q7 ?6 T* F; a. t. Eyz=4
" @3 ]" M2 \2 e" xn=114 {; w% s. Z5 h( ` d
*do,I,1,4$ A0 _% j# I6 k8 g& J* m& @6 h
l,I+yz*n,I+yz*(n-1)
7 Y" V$ S7 e$ G, @! }1 B, E*enddo
- A' _2 T" N2 Z8 Y8 ^a,1+yz*n,2+yz*n,3+yz*n,(n+1)*yz
/ K! G: R; x: }2 n1 R w; ua,1+yz*(n-1),1+yz*n,yz*(n+1),yz*n! s& b" y' L b. t, l$ ?
a,1+yz*(n-1),1+yz*n,2+yz*n,2+yz*(n-1)( v3 U% i" v0 n2 @! n$ I
a,2+yz*(n-1),2+yz*n,3+yz*n,3+yz*(n-1)
' w1 K; f8 z. m- W8 @ ea,3+yz*(n-1),3+yz*n,(n+1)*yz,n*yz
3 {5 ~& ]* \, }! p# d& Z! A$ Mva,2+5*(n-2),7+5*(n-2),8+5*(n-2),9+5*(n-2),10+5*(n-2),11+5*(n-2)
$ X. r- j' c4 Nvsel,s,loc,z,7.2
& S" U7 [* N9 S. J" b' I) \# cvext,52,,,,,0.8, T8 c2 \) a E( p9 c
vsel,all' m4 l% |: @- J. X% q$ w: ^
vadd,all0 {8 }$ j R, ~. O) Y
numcmp,all
% G+ n+ `. {0 i( ? h!********************************' j; B& M- A) o2 F. |( I4 |* G6 t& k
!建立凹槽
8 d$ t" l7 i L- N4 K( H$ z!********************************
1 k% E6 ^" @! I" `3 e, X$ ] w/ Xwpcsys,-1
' g4 N7 ~& Z# U. `8 b# b6 }1 P8 L5 g6 [wpoffs,,0.8,, 0 Z4 l0 u( R( d; n
csys,4 !指定工作平面. R3 |7 v" w/ R2 y% b' x0 L6 b Y; P1 i
!********************************
% f( i3 j C! o. {* Y6 D# O6 a!生成下部等宽段; { z! P9 N. U) { z8 [! M
!********************************
8 d7 d+ B( q/ }5 ^) {$ ow1=0.34 S* Q, m' w. `9 f: e: R
h1=0.1/ \& g% C3 Y3 j+ [
ZZ=0
$ C3 f% R" I% E, Wk,,w1,h1,ZZ,
( D% A p, R6 D' ?' y: yk,,-w1,h1,ZZ,: w0 q# d/ {3 J2 T' s4 a) w' M
k,,-w1,-h1,ZZ,
- k9 D B9 |+ ?' q- Lk,,w1,-h1,ZZ,$ U# ~) Y% F7 z g
a,53,54,55,56
/ {3 B: ?6 R, q6 e/ T Ldundi=2
7 D( o9 \1 w+ L7 n) F$ Avext,51,,,,,dundi
6 w3 x2 c* ?, C! B) D" Qvsel,s,loc,y,09 T- a; l) R' I) Y+ l' m
vplot
8 ]8 e$ M9 h5 {! U5 S% ?) S9 e!********************************# A2 j9 y1 c- q' R! p, A7 m: G
!生成第一变宽段& U6 [* L% s# j- x
!********************************
3 m) a" Y+ C- i) l) ~w1=0.315
: @" x: z' u* Yh1=0.1
- B8 r' T8 \. R. {0 ]+ L7 B- u) @ZZ=2.6' K2 _* @# K8 X, P
k,,w1,h1,ZZ,$ t! o( r6 T% @; v) b3 x# ]
k,,-w1,h1,ZZ,8 l9 a" c. B" n9 D
k,,-w1,-h1,ZZ,
8 z0 C, O: |+ pk,,w1,-h1,ZZ,
3 s; f ~7 g& X5 G+ @$ Cyz=4* u! Q7 [: n/ t/ J' r. U% E
n=2
* Q0 ]/ T4 t8 S* s*do,I,53,56
& a8 S& W' l- j+ W4 ^6 p u7 g) jl,I+yz*n,I+yz*(n-1)! ^- E% J7 b& N, N' V
*enddo. ^1 I5 S" W: ^; l5 }4 @# G( ?
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
: d" F# i: r7 q' V. ?a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz" F" O+ h) F& ?$ C
a,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
9 J! K) a- n4 \1 c" U wa,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
8 B) a+ O) \$ d! R6 I* w, b F. `; Da,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz3 F5 t g8 }( c; Z
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)* b# a/ B" g" s/ P4 T8 j
!********************************2 R* [( t# `" e1 m5 H
!生成第二变宽段5 |" w. E* y# {8 B7 Q- S5 x
!********************************( r" C9 ]/ Y1 g: a, q
w1=0.36
( y" e' ^( d/ o% qh1=0.1( ? L4 j# \5 k4 A. D
ZZ=3.2
5 U7 i3 [$ u6 P+ nk,,w1,h1,ZZ,
5 n9 }# Z% Z6 i4 S9 mk,,-w1,h1,ZZ, s% `2 Z" X$ K, |. [. ]
k,,-w1,-h1,ZZ,
/ B5 c; U3 @# `" fk,,w1,-h1,ZZ, 6 N5 Y- J/ A# @1 ]- L' C% \
yz=4" t: b) @7 a$ K ]$ K$ Z5 b
n=3/ V4 |5 D; p+ L2 S/ @1 j, B$ F- P
*do,I,53,56
6 ?7 j$ f; u: s) r/ R" L7 fl,I+yz*n,I+yz*(n-1)
& L1 m4 F$ f( t6 g+ h/ O' t& Y*enddo6 m4 F+ w4 N4 J7 d" X
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)! E) H" i0 \. a) H! x
a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz6 L# u% B1 S+ S% m, `, Z$ B
a,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
/ |9 W2 L/ m: ]( |3 m: h* S" Qa,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)# L) l, j; j2 n. n6 p
a,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz
: J+ C( o2 ^) O! G; sva,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
0 w7 H. Q" q" @9 f!********************************1 I. @) F* }/ `; N9 e
!生成第三变宽段6 C* I; L& C* N% F3 W4 y+ G
!********************************: D0 D/ S0 k- N: a0 G5 _* [( B
w1=0.421! {- q: ^. X1 O3 } d- }3 u m
h1=0.1. `$ x2 v2 `+ C) t5 A2 e
ZZ=3.7" E1 K* A" i) J( Y _* u- @, O. {
k,,w1,h1,ZZ,
T) n5 |: |9 `% c% fk,,-w1,h1,ZZ,
* I. \! S. b, k+ w, I3 C, u4 \k,,-w1,-h1,ZZ,
$ A5 i5 r* n2 T% N Nk,,w1,-h1,ZZ, 8 p4 d. y2 y) T/ p) I( m
yz=4
5 k0 A/ b# H, O4 u7 e2 ln=46 e% c, z; q0 C
*do,I,53,56
' \" v. S& g3 l: L' el,I+yz*n,I+yz*(n-1)
. C: ^, C3 p7 m4 i/ B$ H6 T*enddo# x' s9 ~- U" z7 p3 y
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
5 h3 R2 f! @# g2 q/ W. ua,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
- [+ U5 v& T+ x2 c6 w& G+ x3 Q- qa,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
3 K% Q$ l/ K2 ~: R' ?1 m/ q# q5 Q& X! @a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
3 Q; q M6 Z* H3 Fa,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz
- K u' @* [; S' e" pva,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2). g/ V8 d9 j3 z$ v
!********************************
- P% D% h) u/ d" x: \# \2 Q* q!生成第四变宽段
- ~9 c, j) ^7 }2 O$ |!********************************# w' S7 A* r5 Z. J! K
w1=0.503
# d, F! Z! c) ^+ B% zh1=0.1
: D% B/ I/ Y2 Z2 X$ @* fZZ=4.2
/ o! p9 E* y6 [, } y4 ik,,w1,h1,ZZ,
: {) ?! |* [" ` z0 C6 lk,,-w1,h1,ZZ,6 x' `0 j7 L& P. |# c
k,,-w1,-h1,ZZ,6 y; m0 `& {1 p |
k,,w1,-h1,ZZ, : P1 N* }5 c: Q: C& z
yz=4: h) X6 y) W3 s% L- Q! }+ p0 d a/ q
n=5
& e* k+ G3 C* h( t+ ]*do,I,53,56
0 b; I9 a3 Y0 r I, X2 d# ll,I+yz*n,I+yz*(n-1)
8 @0 T. T1 w. i*enddo
; e X/ C. p+ _6 ha,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
" I& S. B v4 K* ~a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
" F [0 u2 `' H2 W. Q2 Da,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
7 m, m& x( U. F+ B; R5 }a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
4 \2 s3 g' Y! H- e7 r: M/ U* Ia,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz6 d) b" Y) Z2 }1 q5 A
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
$ C7 s7 {1 k3 k) f h!********************************
- `: H7 w8 N% M8 R. Z2 k# U5 f!生成第五变宽段9 ]: B A7 R% B0 d8 ?% Y
!********************************
* z3 l; T& C8 |9 |1 b7 ?w1=0.606
* ? N0 b# N8 e! P' a% {$ Mh1=0.1! L$ O% a1 E% O: D8 R( G
ZZ=4.7- x2 ^ g: w% W. q! a/ H
k,,w1,h1,ZZ,
: r! ^/ B2 F# p ~* Yk,,-w1,h1,ZZ,
& u+ C$ `$ i2 K1 M, p7 O0 Fk,,-w1,-h1,ZZ,
0 J1 {8 X8 P; }3 Y) ?) D Z6 @k,,w1,-h1,ZZ, : ~) A2 G* s/ L( E1 R7 E* X& x
yz=4
$ D5 V& v i: J$ k2 yn=6
q" k- a- ]3 i% @* p# v0 q*do,I,53,56+ n! ]7 S* f2 K2 ^ j
l,I+yz*n,I+yz*(n-1)
5 {: Q3 P! K! F& i*enddo
- D6 M# t) N- J1 R% \0 a5 Ga,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
$ [* g7 _% S. l0 _a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
) J2 P% ]7 w8 S, H4 P/ E ga,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
# a) q6 s* `" {* B8 L% pa,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)6 r9 h5 J1 ^6 b$ V* x# X: ~
a,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz
4 e$ g' x9 E7 X# lva,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)8 ~+ ~1 B: J( U1 r# p( A" r! k& w8 H
!********************************
9 l9 o7 h0 \8 W6 H/ g1 K) v2 D3 C' E+ ?!生成第六变宽段/ c4 T2 \! C: I1 y" Q2 I# \6 e [
!********************************
/ [( w) `% k! X& i, ^2 }# k+ lw1=0.733# X# N* |3 I K2 ]8 Y4 q
h1=0.1
+ [, P( d$ P7 V1 U8 C- R" }, d$ kZZ=5.2
& V3 G5 Y& I) Y& \6 X) Ck,,w1,h1,ZZ,& \# @; N. W! l6 o* o1 O0 v8 ]
k,,-w1,h1,ZZ,
; J/ B4 y' [: c3 Yk,,-w1,-h1,ZZ,% ^/ u7 m; Z5 x4 V# R% \
k,,w1,-h1,ZZ,
+ H( C u7 Q0 h! M; Y2 y6 Ryz=40 s3 A+ F7 c# x- K4 W% E
n=7- R7 u( u2 k. Z/ a
*do,I,53,56( p1 p8 i4 e/ [1 Y& R+ v& |$ }* z
l,I+yz*n,I+yz*(n-1)
2 E) L( Z- E T0 \, I*enddo4 L1 F/ H1 \% w- M+ Z+ H1 I5 f
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
5 [$ \' }- Z0 ~1 R9 S) O0 {a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz8 M3 U) p: o& L3 Z4 \( ^4 I! Q
a,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)& d2 J& ~5 s. D. h( {. M+ Z
a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
, U* I) l! J/ Oa,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz$ l8 F$ }$ a& q4 p
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
3 H7 S+ O4 @. G' ~7 W!********************************
% e3 u$ g1 [) J!生成第七变宽段
: j4 d" M7 Z- w; v( j% L0 K0 [!********************************7 s6 h. x K# b! }: A0 }) L
w1=0.8825 X3 `! m, t# q) P
h1=0.1
6 ^$ {# O) c0 t/ y; d9 X% {ZZ=5.7
; J; \# ]6 K& V8 K8 i3 |k,,w1,h1,ZZ,- u) i( |' x G: l# {. W( x S: U
k,,-w1,h1,ZZ,
% @3 E: [$ J0 b! O" c# t+ X# Dk,,-w1,-h1,ZZ,( Q: S8 d6 {6 F. {; j+ K2 F
k,,w1,-h1,ZZ,
- _- h" R4 y! i: I3 k- O2 `8 p9 Kyz=49 Q( o" R' F! X
n=8
" v$ u3 }. ^7 s% W1 I+ H5 z*do,I,53,56
" C, l$ U( a# \' ]l,I+yz*n,I+yz*(n-1)
/ m* Q" G- Z' S*enddo( N2 e+ L6 {3 }. E
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
& d/ a9 b& [9 K! y& ia,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz: y/ m$ [9 {) Q& i& ]
a,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
8 I' H; h: u- ]1 @a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
3 s& R* S7 v5 {6 ^! Da,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz3 S) i5 x) q, r
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
\1 c1 a) ?. L6 R4 B!********************************
! V @% U, B1 Y* h$ C0 p/ `!生成第八变宽段3 Q9 m! F0 f, X# y
!********************************
) e/ G& V. K5 [2 ^w1=1.056
# m, r! T7 q* v5 l1 Ih1=0.1
2 J3 r% s5 m5 W) i$ @ZZ=6.2
( p" t! u4 e. h- }k,,w1,h1,ZZ,+ }8 M( d! j7 M2 t) u3 t$ Z9 Q9 {
k,,-w1,h1,ZZ,/ m% S @0 L6 T; z* @
k,,-w1,-h1,ZZ,
* r% f: o# S8 D' h8 I" mk,,w1,-h1,ZZ,
0 T# a! }" C# @ m; K! P' w2 `yz=4
4 n% w: m5 `, O9 c# in=9
+ N$ i; v0 E0 A! C*do,I,53,564 m2 U5 G5 J6 O" B( U/ L
l,I+yz*n,I+yz*(n-1)7 a3 R: R) U& c7 N4 K6 U
*enddo
: p# N: W7 ?7 A, Z3 o* T; Ca,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
4 T+ q& L2 }5 b3 h0 ka,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
2 g A9 J) _% G, A5 ], Ua,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)5 U4 V/ x4 x& u- T( m' |! [
a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
4 [0 k9 x0 J) ^8 M; }! p6 p& \2 Pa,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz
8 T) K. j& u. U% ~$ f# Eva,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
1 f6 j& o* o2 [8 p4 I& V!********************************, B2 @3 w1 E' b
!生成第九变宽段# a, K% M) G( }# g8 c* h8 d
!********************************
% g3 m/ Y/ ]4 w- X6 w) ~w1=1.254
( B. _+ F) K3 {8 t4 O7 `5 Q8 Eh1=0.1% k8 i1 t' _8 }9 t3 H2 D+ Z
ZZ=6.72 y: T" h& `0 M0 \
k,,w1,h1,ZZ,1 q" V' K* t& d8 r! i- N) S
k,,-w1,h1,ZZ,3 W- K7 r- j+ ~: U1 |. e. S+ p4 \
k,,-w1,-h1,ZZ,
* ]) {! M1 v' t! R8 R4 S- _* Wk,,w1,-h1,ZZ,
) D* V7 z& b0 l; o/ a2 eyz=41 x1 e1 F% I6 l3 Z
n=10: F- @ t3 ^6 v) m+ g
*do,I,53,56
* h8 T# o( b! J" Tl,I+yz*n,I+yz*(n-1)* P: W( |7 R) [ w4 Q
*enddo
5 D2 G, b8 U& C1 z5 ^8 ]7 i3 pa,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)
& i) j! E/ g; H* m/ L7 @; M7 Aa,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
. J% v: J/ w. h, X. d( l: {- Ga,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)/ ?' Z* |1 f& U/ e0 g" N( ~6 O
a,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)* G. ~: t# b* T: }, P
a,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz7 h' k4 e' N4 d. b; l6 r
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2)
2 {6 r$ }* A, x" K!********************************
0 V N/ q0 P9 J/ s!生成第十变宽段
+ |# z) m3 A9 l: s!********************************
. Q9 |6 z5 j9 Rw1=1.48" u r1 l, w' I2 B
h1=0.18 k# K) y. M; E# j: h" a& z6 k
ZZ=7.2" z* f$ O1 v; x% s) `6 {8 O& U1 A3 I
k,,w1,h1,ZZ,, T2 ~# \- |9 a( v1 i
k,,-w1,h1,ZZ,+ d: g3 H9 @6 C9 Y1 G
k,,-w1,-h1,ZZ,
3 V5 C' w4 U2 K1 Q& p! x) H8 X$ @+ Sk,,w1,-h1,ZZ,
6 L! f7 P2 J) j W! J' F* Gyz=4* t9 P# r c+ j0 n4 M
n=11
! V3 n+ Y1 x# v* A6 b9 h6 }*do,I,53,564 k$ i6 o7 n& @% m/ p8 w
l,I+yz*n,I+yz*(n-1)
1 z4 Z8 O' J" I i! W0 W$ q& I( u- M4 r*enddo' h4 k, J# `! |3 a$ W4 `
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1). }4 G" A M0 ^3 m
a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz2 n0 h+ P$ U1 i4 ~" K5 B
a,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
# Y4 N* l" c2 Y8 L, X, X1 Ma,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)
% C0 R; W2 @' G8 ^4 va,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz
* _7 z; L+ A' Kva,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2). u9 _. N4 A2 x8 Z8 ?9 M2 g" S
!********************************6 [. A3 ~: w/ _5 @. L0 i) c7 M! {
!生成第十一变宽段
' z; L+ h4 x6 S+ |! X1 O5 V!********************************/ e1 e' S1 k/ M; G
w1=1.9! Q. ]6 {' h6 ~6 }
h1=0.1
) `/ g/ N2 A& }9 qZZ=8.0; \! Q' ]; M) m# z8 Y; I& b/ c
k,,w1,h1,ZZ,
( y! \9 R/ C* _( w7 o9 uk,,-w1,h1,ZZ,1 b. ^5 T) |) j0 {& J2 b
k,,-w1,-h1,ZZ,/ y/ o! \+ q3 Z! c* j5 D% k
k,,w1,-h1,ZZ,
" ]7 c, G* g8 x& j7 byz=4$ B$ ^- P1 W2 h0 k5 ?( p6 `
n=12/ v* g) Z* ^) p( {/ a3 E0 F, s
*do,I,53,56
' b/ V% G' B- \" ~l,I+yz*n,I+yz*(n-1)
! H* b. _2 k9 {* G: P$ m*enddo4 ~) Q$ ~8 f" U! I5 A' d
a,52+1+yz*n,52+2+yz*n,52+3+yz*n,52+yz*(n+1)7 O1 D( _2 T/ h' z! \: M
a,52+1+yz*(n-1),52+1+yz*n,52+yz*(n+1),52+n*yz
5 N9 t% Y) o! v. b) F \2 pa,52+1+yz*(n-1),52+1+yz*n,52+2+yz*n,52+2+yz*(n-1)
9 ]( m# y2 h8 f, Y; F+ D1 e* L7 _# E4 Ea,52+2+yz*(n-1),52+2+yz*n,52+3+yz*n,52+3+yz*(n-1)! U. ?% k% o# [7 T
a,52+3+yz*(n-1),52+3+yz*n,52+yz*(n+1),52+n*yz6 U- ^: x! V. e' Y0 Y* V8 j2 f
va,52+5*(n-2),57+5*(n-2),58+5*(n-2),59+5*(n-2),60+5*(n-2),61+5*(n-2). X" p% b! N, n/ S( I' F" O
vadd,all; ?: f/ j* A! T- ~- U( A( A
csys,0
- _7 Z. e$ F/ k' J0 s3 tvgen,2,14,,,,-1.6,,,,0, !需要复制两次才可以
- y ~7 L- D* s$ n) t9 s( Y! Pvsel,all
" D- H" W3 b% r7 m. B7 |vsbv,1,2,sepo,,,, q% n" y/ F/ \' j+ u0 n I
vsbv,3,14,sepo,,,
7 ^5 D) o: k" H) Q" }!********************************4 G* a7 a4 s$ P4 u
!实体完成
: ~$ ^6 K8 e7 |5 i; z!******************************** b" C* ?5 z! m. m: T7 d
vatt,1,1,1( E4 _. T) ^8 m
lsel,s,loc,z,8
/ T- ~; B# u' ^, w' I& Qlesize,all,0.1 !指定扫体源划分方式! n9 r& N9 k+ Z5 h" v
vsweep,1,294,293,,
3 a$ m' ]5 Z$ M# C+ b: hwpcsys,-1
, i& I2 `& d4 ?" Kwpoffs,,0,,9 r! V7 t4 V! J! H- ~& W, H
wprota,,90,,
9 Q6 l: M% @/ p) @4 |finish) }8 V8 V" K$ I& ~! x( U0 A- L
/solu
' }9 R' [4 a* V( Z& dantype,static/ d) N& a l; L! ~
outer,basic,all
A4 V4 B3 J; A" m7 a; cnsel,s,loc,z,08 g( ~6 e: k, Y4 ]
d,all,all !施加节点约束5 T2 H! T' ]& W
nsel,s,loc,z,8
' J# i) t% D3 c/ Xnsel,r,loc,x,-3.6,-2.4; K' X. o8 n& g5 A/ y0 d
nsel,r,loc,y,-0.6,0.6
$ r& R- [7 j4 n0 }sf,all,pres,9.81E+06 !施加支座作用力4 `$ j/ V& t# g
nsel,s,loc,z,8/ \( R( x& r9 F# A
nsel,r,loc,x,2.4,3.69 \8 s7 m9 y8 M4 y
nsel,r,loc,y,-0.6,0.6
7 p; c; j P- S/ e; C! W- hsf,all,pres,9.81E+06 !施加支座作用力
# y) B5 ]5 }& i) _8 A$ c, R* R$ Facel,,,9.81 !施加重力! b- Y5 R, c0 p8 t. L
allsel,all$ I( Y) O! k) U1 I
solve
6 M) K) R1 ]; [" W

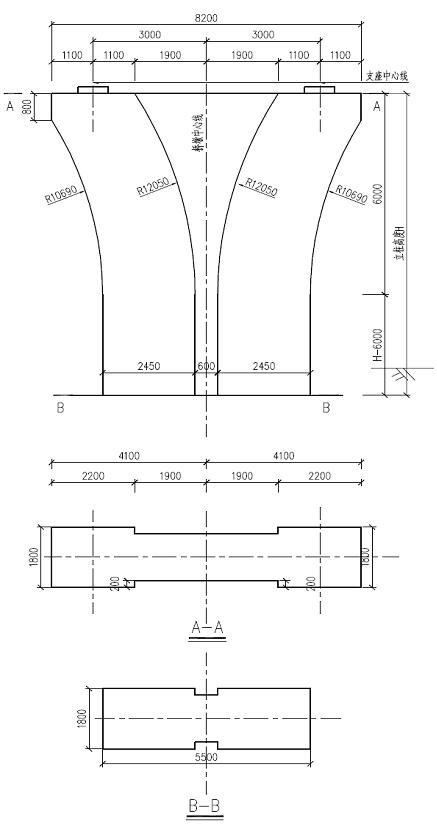

+ |+ B4 T3 _0 x3 K这是本人用ansys计算实体墩的命令流，希望大家多交流，提出宝贵意见。
/ I8 Y9 f ~9 }- d! h# h |
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
显身卡
