连续梁施工分析例题（征集daan-限ansys），奖励积分5分

上传一个连续梁施工方面的题目（具体见附件，未附答案），徐变系数大家可以自己指定，有兴趣的可以探讨下

三跨梁在支架上分三次现浇，杆件在重q=10T/M，跨径、分段见图。第Ⅰ阶段（假定6月1日）先浇注第一梁段a，经7天后（6月8日）梁段a落架，引起内力如图。过7天后（6月15日）第Ⅱ阶段开始，浇注第二梁段b与第一梁段a相联，在建筑7天后（6月22日）梁段b落架（假定这时第二梁段与第一梁段相联起作用），由此引起内力见图。再过7天后（6月29日）第Ⅲ阶段开始，浇注第三梁段c与第二梁段b相联，在浇注7天后（7月6日）梁段c落架（假定这时第三梁段c与第二梁段b相联起作用），有关徐变系数从表中查得。求2、4点的成桥后14天的弯矩。

[ 本帖最后由 水幽寒 于 2006-6-5 03:59 PM 编辑 ]

当然，ansys没有直接计算混凝土徐变的功能，所以首先要建立自己的徐变模型，然后再建立梁单元或实体单元加入前面的徐变模型

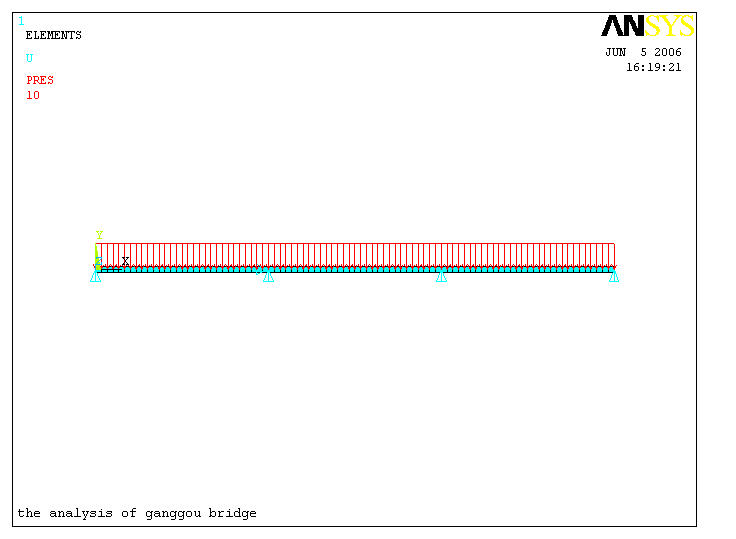

下面是针对本题ansys建立的梁单元模型，仅供参考
/clear
/prep7
/title,the analysis of ganggou bridge
et,1,beam23
mp,prxy,1,0.1667
mp,dens,1,2600
mp,ex,1,3.5e10
r,1,1*0.9,1*0.9**3/12,0.9,,,,
et,2,beam23
mp,prxy,2,0.1667
mp,dens,2,2600
mp,ex,2,3.5e10
r,2,1*0.9,1*0.9**3/12,0.9,,,,
keyopt,1,4,1
keyopt,2,4,1
et,3,beam23
mp,prxy,3,0.1667
mp,dens,3,2600
mp,ex,3,3.5e10
r,3,1*0.9,1*0.9**3/12,0.9,,,,
keyopt,3,4,1

k,1,0,0
k,2,30,0
k,3,36,0
k,4,60,0
k,5,66,0
k,6,90,0
l,1,2
l,2,3
l,3,4
l,4,5
l,5,6
allsel,all
lsel,s,loc,x,0,36
latt,1,1,1
esize,1
lmesh,all
lsel,s,loc,x,36,66
latt,2,2,2
esize,1
lmesh,all
lsel,s,loc,x,66,90
latt,3,3,3
esize,1
lmesh,all
nsel,s,loc,x,0,36
esln,s,1,all
cm,kuai0,elem
nsel,s,loc,x,36,66
esln,s,2,all
cm,kuai1,elem
nsel,s,loc,x,66,90
esln,s,3,all
cm,kuai2,elem
allsel
sfbeam,all,1,PRES,10
nsel,s,loc,x,0
nsel,a,loc,x,60
nsel,a,loc,x,90
d,all,uy,0
allsel
nsel,s,loc,x,30
d,all,ux,0
d,all,uy,0
allsel

[ 本帖最后由 水幽寒 于 2006-6-5 04:25 PM 编辑 ]

问题基本解决——这是本人毕业论文的部分
三跨梁在支架上分三次现浇，杆件在重q=10T/M，跨径、分段见图。第Ⅰ阶段（假定6月1日）先浇注第一梁段a，经7天后（6月8日）梁段a落架，引起内力如图。过7天后（6月15日）第Ⅱ阶段开始，浇注第二梁段b与第一梁段a相联，在建筑7天后（6月22日）梁段b落架（假定这时第二梁段与第一梁段相联起作用），由此引起内力见图。再过7天后（6月29日）第Ⅲ阶段开始，浇注第三梁段c与第二梁段b相联，在浇注7天后（7月6日）梁段c落架（假定这时第三梁段c与第二梁段b相联起作用），有关徐变系数从表中查得。求2、4点的终极弯矩。(见《预应力T型刚构式桥》P176)

计算点      理论值        Beam23结果        相对误差%                      Solid45结果                       相对误差%
2点弯矩        -832.81        -858.844                           3.1                         838.629                           0.7
4点弯矩        -898.6        -908.143                            1.1                          885.445                               1.5
第一阶段（7天~21天）为静定结构体系，单悬臂状态，徐变不引起内力重分布。第二阶段（21天~35天），在第二梁段与第一梁段合龙后，由于两个梁段的徐变发展不同，引起内力重分布。第三阶段（35天~ ），三短梁由于徐变发展的不同，仍会有内力重分布的发生。同样的徐变系数较大的梁段发生的徐变也较大 ，内力变化较大。

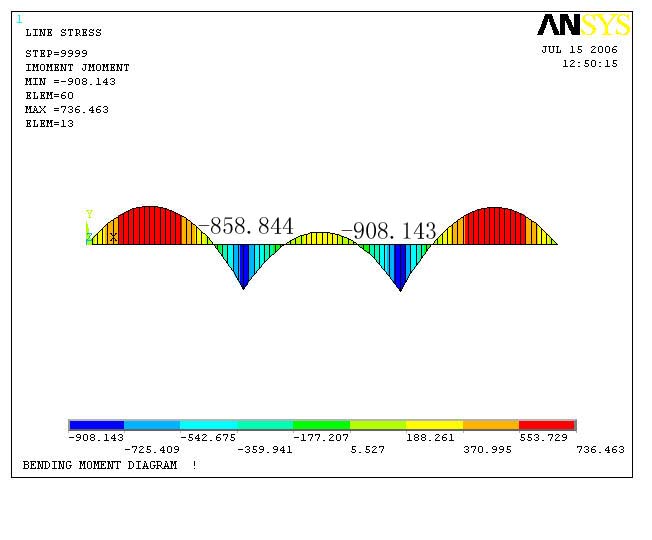

通过比较弹性变形和徐变弯矩，可以看出：在徐变次内力的影响下，两个支座的弯矩显著的增长。实体单元应力与理论值相对误差在6%左右，由图可以看出在弹变中有局部应力偏差较大，尤其在支座与梁体接触处，但到了徐变变形里就有所缓和，可见徐变能够削减局部应力的峰值。

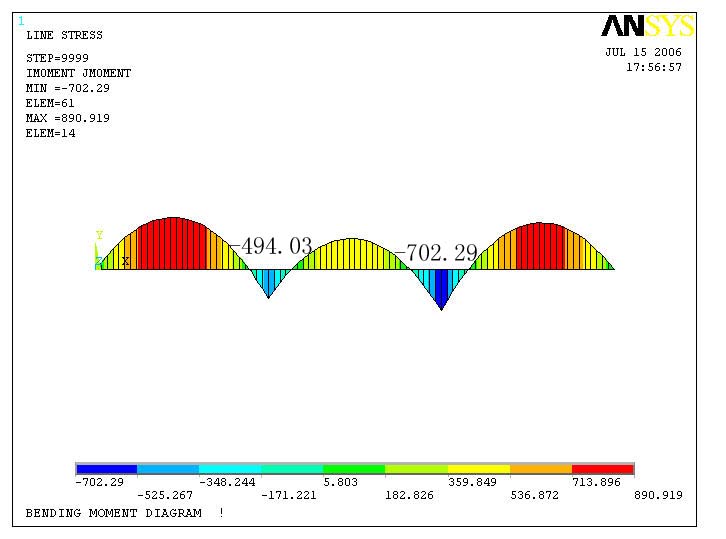

分别采用梁单元和实体单元建立模型。对比结果见上

[ 本帖最后由 水幽寒 于 2006-8-14 12:14 编辑 ]

高手啊,在别的论坛上也看到很多你的帖子,请水幽寒兄多多指点!!!

共享一下徐变部分命令流吧

斑竹，能否把整个命令流贴上来，以便大家参考学习。:victory:

要用到二次开发吧，你以上的图形是土木模块的吧。

我怎么不能下附件啊

有限制没有粘完
